DH100
Drive axle pattern for buses and trucks, offering excellent asphalt traction. Reduced wear and improved wet grip with its block design. Enhanced tread profile resists uneven wear under heavy loads and ensures safety and extended mileage in winter conditions. Suitable for retreading.
Resistance against irregular wear with longer tread life
Improved driving balance and extra-long tread life
Excellent retreading capabilities and long life

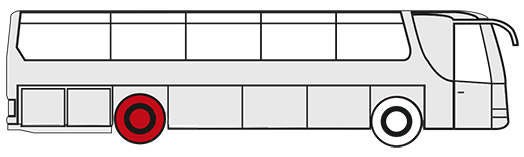

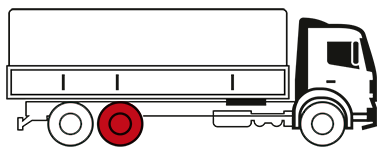

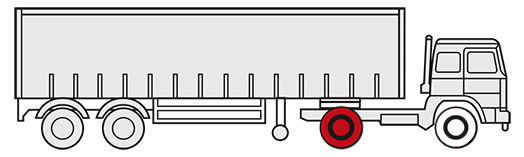

POSITION / APPLICATION
AVAILABLE SIZES
| Tire Size | Speed Index | Load Index | Max. Load per Tire Single | Inflated Pressure | Recom. Rim Width (in.) | Approved Rim Width (in.) | Section Width | Outer Diameter | M+S | Snow Flake | Fuel Efficiency | Wet Grip | DB | External Rolling Noise | Label |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 315/70 R22.5 154/150L | L (M) | 154/150(152/148) | 7500 (7100) | 130 | 9 | 9.75 | 315 | 1021.5 | Yes | Yes | E | B | 75 | B | LABEL |
| 285/70 R19.5 146/144L | L (M) | 146/144(140/137) | 6000 (5000) | 130 | 8.25 | 7.50 , 9.00 | 287 | 897.5 | Yes | Yes | E | C | 74 | B | LABEL |
| 265/70 R19.5 140/138M | M | 140/138 | 5000 | 112 | 7.5 | 6.75 | 266 | 866 | Yes | Yes | D | C | 74 | B | LABEL |
| 315/60 R22.5 152/148L | L | 152/148 | 7100 | 123 | 9 | 9.75 | 386 | 955 | Yes | Yes | D | B | 75 | B | LABEL |
| 295/60 R22.5 150/147L | L | 150/147 | 6700 | 130 | 9 | 9 | 292 | 926 | Yes | Yes | E | C | 74 | B | LABEL |
| 11 R22.5 148/145M | M | 148/145 | 6300 | 123 | 8.25 | 7.5 | 278.5 | 1058 | Yes | Yes | E | C | 74 | B | LABEL |
| 12 R22.5 152/148M | M | 152/148 | 7100 | 123 | 9 | 8.25 | 300 | 1096 | Yes | Yes | D | B | 74 | B | LABEL |
| 315/80 R22.5 154/150M | M (L) | 154/150(156/150) | 7500 (8000) | 120 | 9 | 9.75 | 312 | 1096 | Yes | Yes | D | B | 75 | B | LABEL |
