GH100
The GH100 pattern is ideal for all axles on buses and for the steer or non-driven second axle on trucks. The tread pattern design is optimized for steering and traction on wet surfaces. Its superior carcass structure ensures excellent braking performance.
Safe and balanced performance, high durability, minimizes fuel consumption
Enhances reatreadability for saving cost and environment
Offer maximum grip and short braking distances

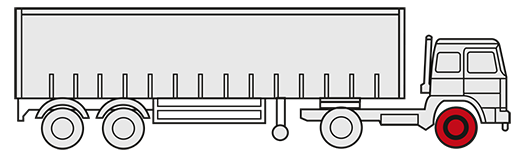

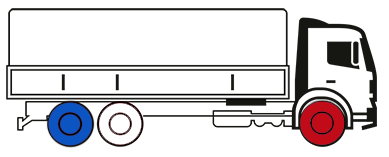

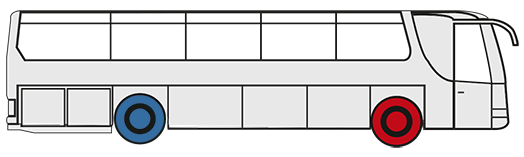

POSITION / APPLICATION
AVAILABLE SIZES
| Tire Size | Speed Index | Load Index | Max. Load per Tire Single | Inflated Pressure | Recom. Rim Width (in.) | Approved Rim Width (in.) | Section Width | Outer Diameter | M+S | Snow Flake | Fuel Efficiency | Wet Grip | DB | External Rolling Noise | Label |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 245/70 R19.5 136/134M | M | 136/134 | 4880 | 123 | 7.5 | 6.75 | 247.5 | 843.2 | Yes | Yes | D | B | 69 | A | LABEL |
| 265/70 R19.5 140/138M | M | 140/138 | 5000 | 112 | 7.5 | 6.75 | 263.6 | 865.8 | Yes | Yes | D | B | 69 | A | LABEL |
| 285/70 R19.5 146/144L | L (M) | 146/144(145/143) | 6000(5800) | 130 | 8.25 | 7.50 , 9.00 | 285 | 897 | Yes | Yes | D | B | 69 | A | LABEL |
| 295/80 R22.5 152/148M | M | 152/148 | 7100 | 123 | 9 | 8.25 | 303 | 1056 | Yes | Yes | D | A | 69 | A | LABEL |
| 315/80 R22.5 154/150M | M(L) | 154/150(156/150) | 7500 (8000) | 120 | 9 | 9.75 | 311 | 1085 | Yes | Yes | D | A | 70 | A | LABEL |
