GH110
Suitable for all bus axles and steer/non-powered second axles on trucks.

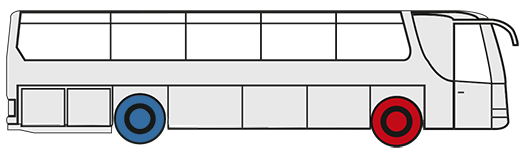

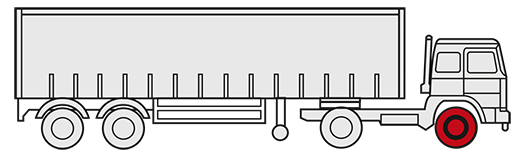

POSITION / APPLICATION
AVAILABLE SIZES
| Tire Size | Speed Index | Load Index | Max. Load per Tire Single | Inflated Pressure | Recom. Rim Width (in.) | Approved Rim Width (in.) | Section Width | Outer Diameter | M+S | Snow Flake | Fuel Efficiency | Wet Grip | DB | External Rolling Noise | Label |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 285/70 R19.5 146/144L | L (M) | 146/144(145/143) | 6000 (5800) | 130 | 8.25 | 7.50 , 9.00 | 283 | 894 | Yes | Yes | D | B | 69 | A | LABEL |
| 285/70 R19.5 150/148J | J | 150/148 | 6700 | 130 | 8.25 | 7.50 , 9.00 | 283 | 894 | Yes | Yes | D | B | 69 | A | LABEL |
| 295/80 R22.5 152/148M | M | 152/148 | 7100 | 123 | 9 | 8.25 | 301 | 1055 | Yes | Yes | C | A | 69 | A | LABEL |
| 295/60 R22.5 150/147L | L | 150/147 | 6700 | 130 | 9 | 9.75 | 287.6 | 921.2 | Yes | Yes | C | A | 69 | A | LABEL |
| 315/80 R22.5 154/150M | M(L) | 154/150(156/150) | 7500 (8000) | 120 | 9 | 9.75 | 312 | 1080 | Yes | Yes | C | A | 70 | A | LABEL |
| 315/70 R22.5 156/150L | L (M) | 156/150(154/150) | 8000 (7500) | 130 | 9 | 9.75 | 315 | 1010 | Yes | Yes | C | A | 72 | A | LABEL |
| 315/60 R22.5 154/150L | L | 154/150 | 7500 | 131 | 9.75 | 9 | 314.5 | 949.2 | Yes | Yes | C | A | 69 | A | LABEL |
| 385/65 R22.5 164K | K | 164 | 10000 | 131 | 11.75 | 12.25 | 373.5 | 1062 | Yes | Yes | C | A | 69 | A | LABEL |
| 385/55 R22.5 160K | K | 160 | 9000 | 130 | 11.75 | 12.25 | 381 | 996 | Yes | Yes | C | A | 72 | B | LABEL |
